PVD Technology for Tooling
High Performance PVD Coating Equipment for Cutting Tools
We offer Expertise : coating process in relation of machining processes
Design, develop, and deploy your own custom coatings with our support
High Speed Coating System
for Cutting Tools
Our High Speed Coating System delivers exceptional efficiency
and versatility with an optimized process for high-performance
coatings on cutting tools
High Speed Coating System for Cutting Tools
Our High Speed Coating System delivers exceptional efficiency and versatility with an optimized process for high performance coatings for cutting tools.
Get MPC Series BrochuresKey Features & Benefits
- HPIES High Performances Ion Etching System
- High Efficiency & Flexibility
- Low running costs
- Easy to operate
- Fast and Easy target exchange

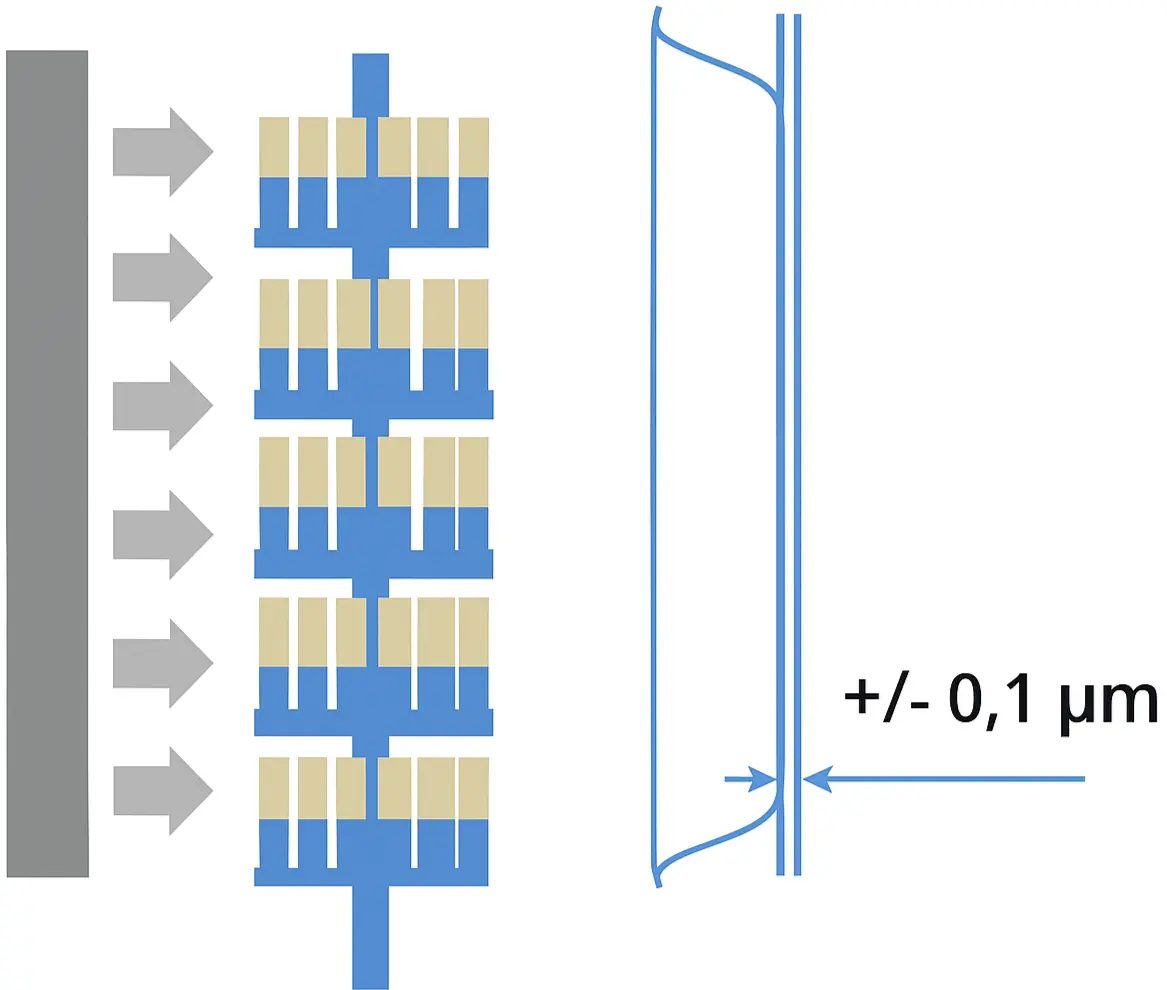

- Tight thickness tolerances +/-0,1 µm
- Local support
- Customized configuration
- Coating process with up to 4 different target materials
Wide Range Coating Portfolio:
Monolayer – Multilayers – Gradient Layers – Nanolayers
Available Technology Configurations:
- Arc
- Sputtering
- Hybrid Arc / Sputtering

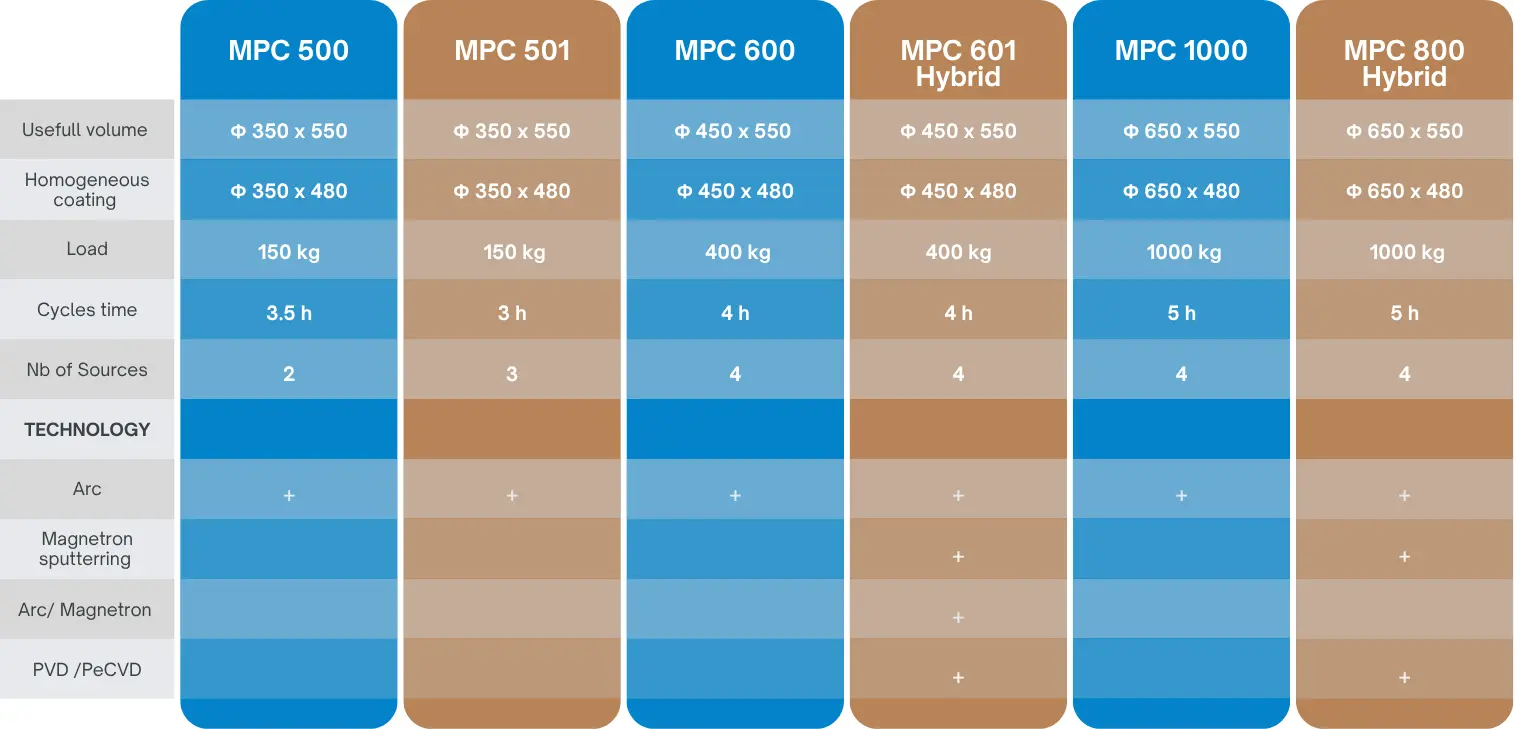

PVD Coaters Equipment

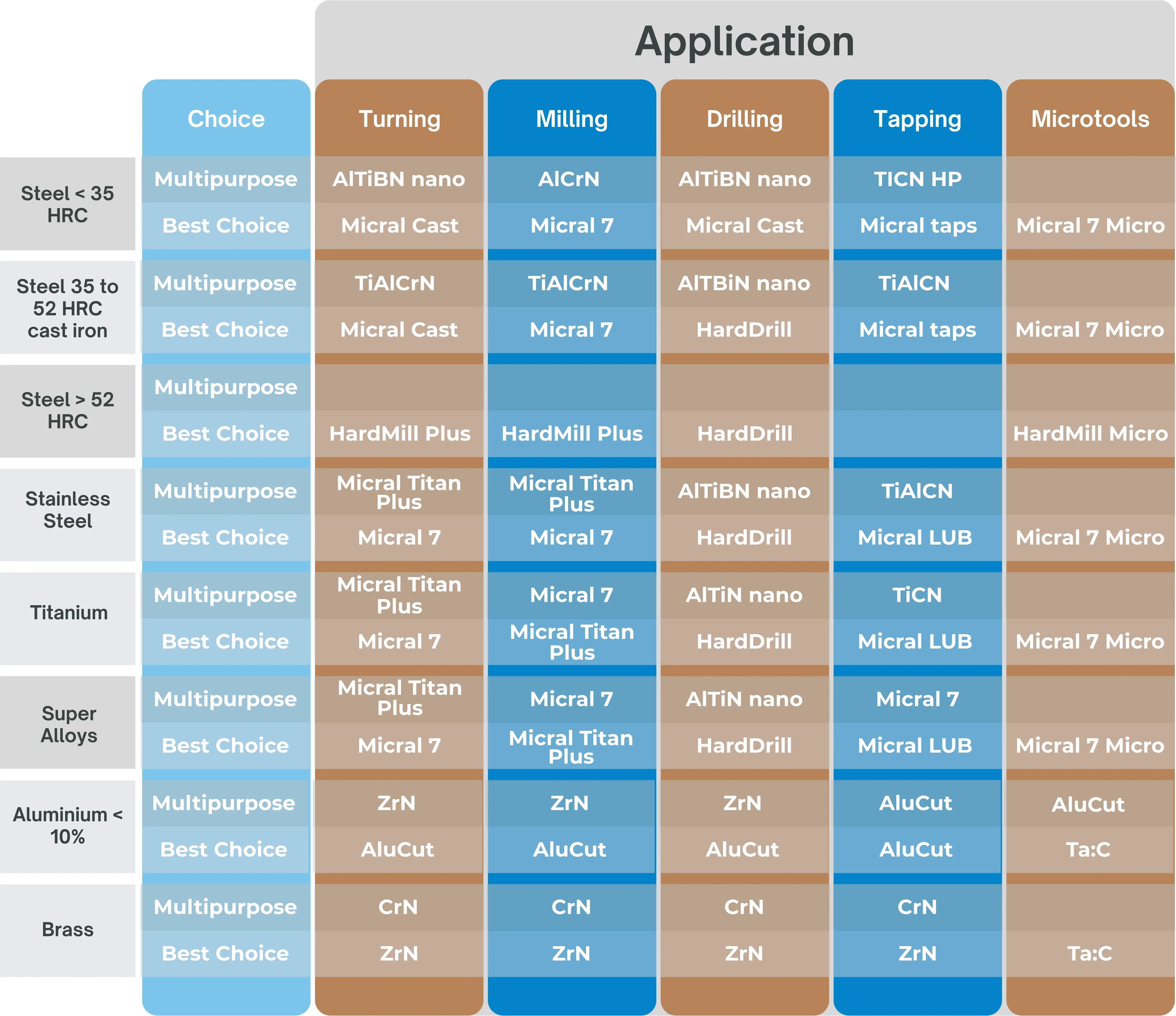

Coating Process
High Performance Coating
- High Hardness for abrasive wear protection
- Low friction for adhesion wear protection
- Oxidation resistance for chemical wear
- Low thermal conductivity
- Hot hardness for thermal resistance
- Toughness for shock resistance
- Smooth surface for chip removal

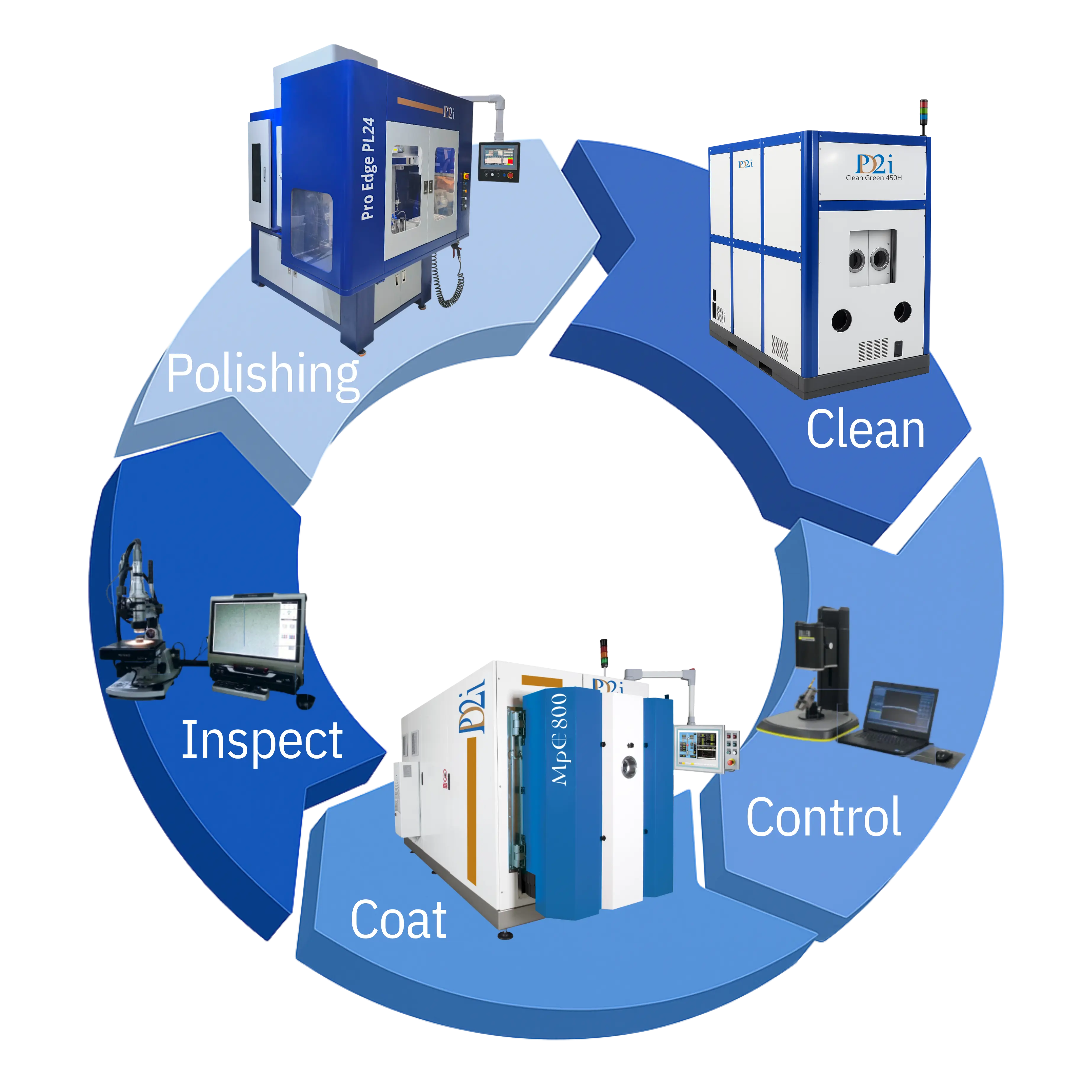

Turnkey for High Speed Coating System
Turnkey packages consist of:
- PVD coating equipment
- Green Cleaning equipment
- Edge Preparation and Post Treatment Equipment
- Quality control packages
- Fixturing
Expertise tailored to offer the most effective solutions
At PD2i everything starts with an in-depth understanding of the application. Once the requirements for an application are completely understood, PD2i starts finding the best solution for the specific application from individual machines to complete turnkey operations.
